金属电加热器

  •   220v250w包装机电热棒

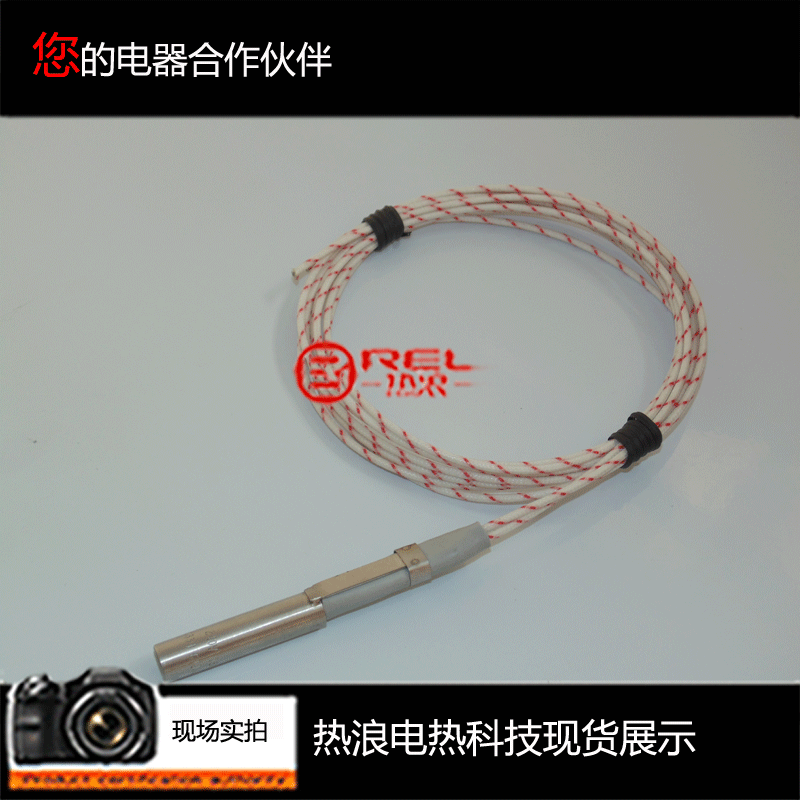

  220v250w包装机电热棒

220v250w包装机电热棒

  • 材质 304不锈钢
  • 型号 HHTD-012-040-2002
  • 使用寿命 8000(h)
  • 产品认证 ce
  • 产品描述:金属模具加热管又称单头电热管,该加热管采用Ni80Cr20合金发热丝作发热体、耐高温绝缘氧化镁粉作绝缘导热介质、耐高温合金材料作外壳护套,结合一端出线结构绕丝工艺,使得其具有发热量大、体积小、耐温高、精度高、升温速度快等特点。为了便于温度检测、过热保护、延长加热管的使用寿命,可将测温热电偶集成到加热管内部。
  • 在线订购
是否进口 加工定制 品牌 热浪
型号 TNJ-1250220250 材质 304不锈钢 功率 250(W)
工作电压 220(V) 管径 12(mm) 主要用途 模具
产品认证 ce 使用寿命 8000(h) 长度 长度50mm
直径 12mm 热密度 19w/cm2



undefined


undefined


直径12mm电热管 长度50mm干烧发热管 220v250w包装机电热棒 干烧发热管现货

与国内同类产品比较有以下显著的优点:

1.热效率高,设计制作时,采用外绕丝生产工艺,有效的提高了发热丝的热传导能力;

2. 材料及设备的使用,结合精湛的生产技术,出厂的产品性能和国外同款产品相比,不相上下,但价格却为 同类产品的1/4;

3.1200度耐高温电热管封口胶的使用,解决普通环氧、硅橡胶等材料的耐温低,阻燃性差的问题;

4.陶瓷封口工艺,有效的隔离加热管的热量散发到导线部位,而不引起“短路”或“短路”故障的出现;

5.直径12mm电热管 长度50mm 220v250w包装机电热棒 干烧发热管产品性能稳定,使用寿命为常规电热管的5倍以上。

Diameter 12mm 50mm electric tube length 220v250w packaging machine electric rod dry heat pipe spot
Compared with the domestic similar products have the following significant advantages:
1 high thermal efficiency, the design, the wire production process using, effectively improves the heat conduction ability of the heating wire;
2. Import materials and equipment used, in conjunction with the exquisite production technology, factory product performance and the foreign same products compared, comparable to, but the price is for 1 / 4 of the imported products;
3.1200 degree temperature resistance heat pipe sealing glue used, solve the ordinary epoxy, silicone rubber and other materials, low temperature, flame retardant problem;
4 ceramic sealing process, the heat emitted from the heat pipe is distributed to the conductor part, without the appearance of "short circuit" or "short circuit";
5 220v250w 12mm 50mm packaging machine electric rod dry heat pipe product performance is stable, service life of the conventional electric heating tube more than 5 times.
